Quick Details

  • Condition: New
  • Type: Wheel Tractor, mini tractor excavator
  • By wheel: 4WD
  • Usage: Garden Tractor
  • Drive Type: Gear Drive
  • Power(W): 13.23KW-40.44KW
  • Certificate: CE
  • Brand Name: HUAXIA
  • Model Number: HX354
  • Place of Origin: Shandong, China (Mainland)
  • After-sales Service Provided: Overseas third-party support available
  • Model: mini tractor excavator
  • Carbin: with fan,fan&heater,air condition
  • Color: green,red,bule,orange ,any color
  • Logo: costomizd,for free
  • Tire: radial tire,paddy tire,turf tire
  • Package: nude package or SKD
  • Implement: loader,plough,mower,trailer,snow blower and so on
  • Delivery time: 20-30 days after payment
  • Payment: T/T,LC

Packaging & Delivery

Packaging Details: Nude package
Iron frame for SKD
Product Description





Main technical data:



ModelHX404HX454HX484HX504HX554
Type40HP 4WD45HP 4WD 48HP 4WD 50HP 4WD 55HP 4WD
Overall Dimentions (mm)L x W x H: 3550 x 1660 x 1550
Front Wheel Distance(mm)1300
Back Wheel Distance(mm)1300
Wheel Base(mm)1980
Min Ground Clearance (mm)300350
Front Tire(mm)6.5-16
Back Tire(mm)11.2-24
Net Weight(kg)1710
Rated Traction Force(kn)9.7-12.8
Engine
ModelJDM490JD495XC498JD4100JD4102
Typevertical, 4-cylinder, water cooled and 4-stokes
Rated Speed2300/2400rpm
Rated Power 29.4 ~ 34.34kw
Transmission Gear Box (4+1)*2
Clutch Dry Single-stage or Dual-stage Clutch
Steering Hydraulic Steering
PTO540/1000
Rate Power25.7-40.4kw
Hydraulic Gear Pump Two Hydraulic Pumps



tractor con pala Detail photo







FAQ





Help and Support Centre - Frequently Asked Questions



  Q. I'm a complete tractor novice, never driven one in my life - can you help me?
A. Absolutely! Your new tractor comes with a training DVD and instruction manual. If you still need assistance, we're only a phone call away - we're here to help.

Q: Why are HuaxiaTractors such awesome value for money?
A: Huaxia Tractors are awesome value because we are manufacturer. We have no commercial lease to pay. Tractors and implements are stored in a  rural shed, so we pass the savings directly on to you.

Q: Do implements require any assembly?
A: Yes. Most implements have some assembly required, they're typically partially assembled for transportation. Tightening of all bolts is required.

Q: What lubrication do implements require?
A: Unless otherwise stated, all implements with gearboxes, such as slashers, post hole borers and rotary tillers, are shipped dry and require the addition of gear oil.

Q: Is the three point linkage limited to just two positions? (Up or down).
A: No. The three point linkage can be stopped at any position.

Q: What type of three-point linkage does the tractor have?
A: The tractor has a Category 1 three-point linkage

Q: How much weight can the three point linkage lift?
A: This depends on which model tractor you purchase. Please review the specifications page.

Q: How much fuel does the tractor use?
A: Approximately 5 - 7 litres per hour, depending on engine capacity, speed, load, etc.
Please review the specifications page for more information.

Q: What speed and power does the PTO deliver?
A: The PTO has dual speeds: 540 / 1000 RPM.

Q: What type of brakes does the tractor have?
A: The Fumetsu has Non-Hydraulic Drum Brakes on the rear wheels.

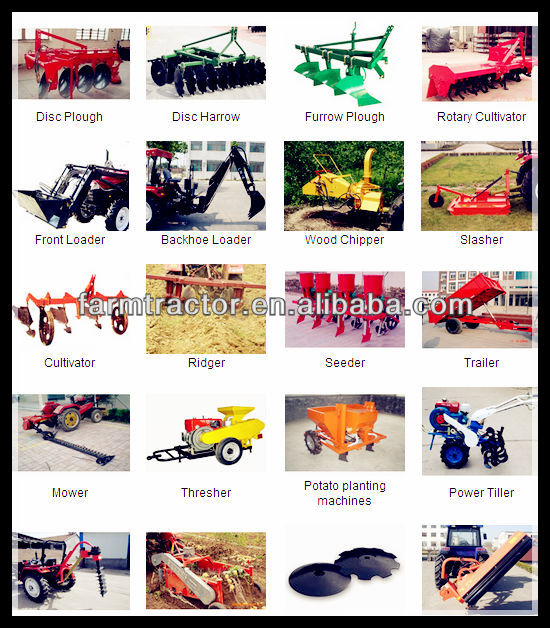

Implements
